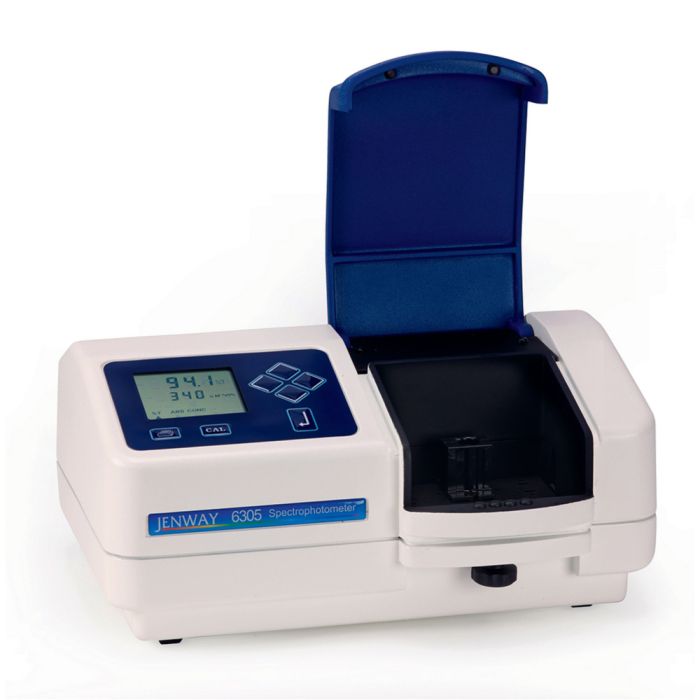

Jenway 6300 Spectrophotometer

The Jenway 6300 UV/Visible Spectrophotometer is a high quality, low cost unit which is ideal for spectrophotometric applications in schools & colleges. The spectrophotometer has a large wavelength with Absorbance, %T and concentration modes.  It has a multi-parameter display with wavelength and photometric readouts and it utilises a high quality, pulsed xenon lamp.

The Spectrophotometer is supplied with the following:

• Mains Lead (for 230V/50Hz)
• Pack of 100 Disposable Cuvettes
• 10mm x 10mm cell holder
• Interface Cable
• PC Software on CD-ROM which requires free on-line registration following the manufacturer's instructions.

Technical Specifications:

• Wavelength Range: 198-1000nm
• Wavelength Resolution: 1nm
• Wavelength Accuracy: +/-2nm
• Spectral Bandwidth: 8nm, 6nm over the UV range
• Transmittance: 0 to 199.9T
• Absorbance: -0.300 to 1.999A
• Accuracy: +/-1T @ 10T, +/-0.04Abs at 1.000 Absorbance
• Resolution: 0.1T, 0.001A
• Stray Light: 0.5T at 220 and 340nm
• Stability: 0.002Ah after 30 minutes
• Concentration Range: -300 to 1999
• Concentration Resolution: 0.1 to 1
• Units: ppm, mgl, gl, M, blank
• Factor: 0 to 199.9, 1000 to 9999
• Light Source: Xenon Lamp
• Outputs: Analogue and RS232
• Power: 50W
• Dimensions: (W)365mm x (D)272mm x (H)160mm
• Weight: 6kg
